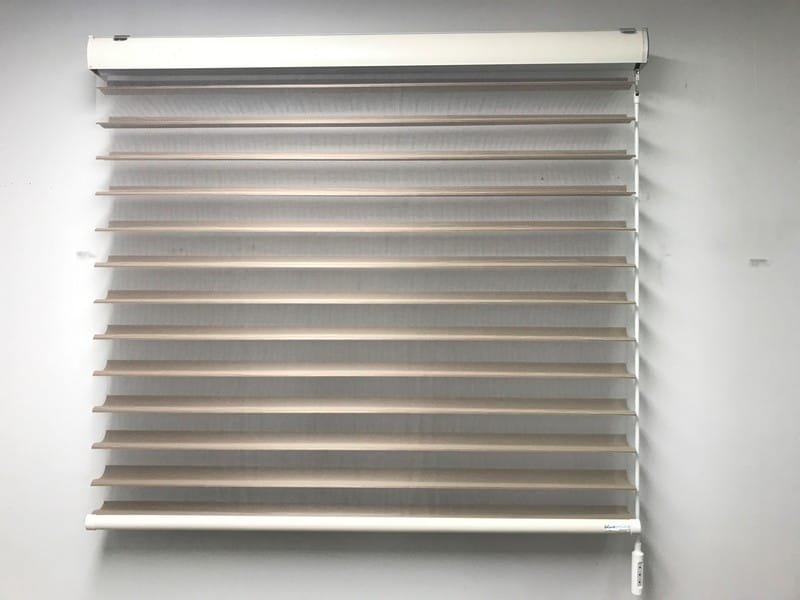

Motorized Blinds Alternative

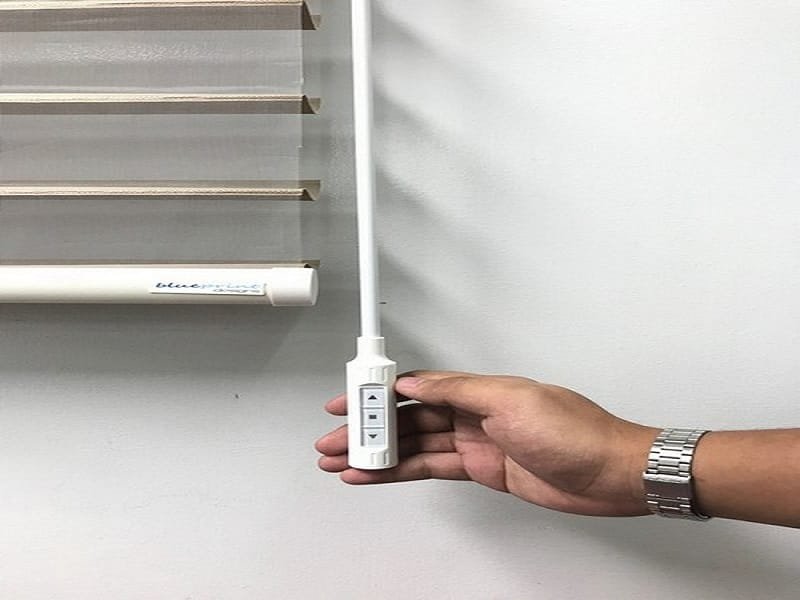

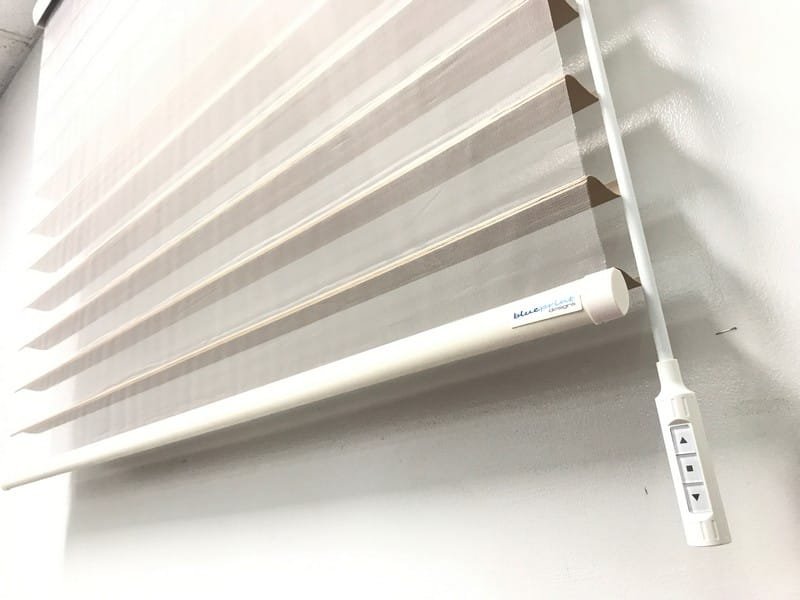

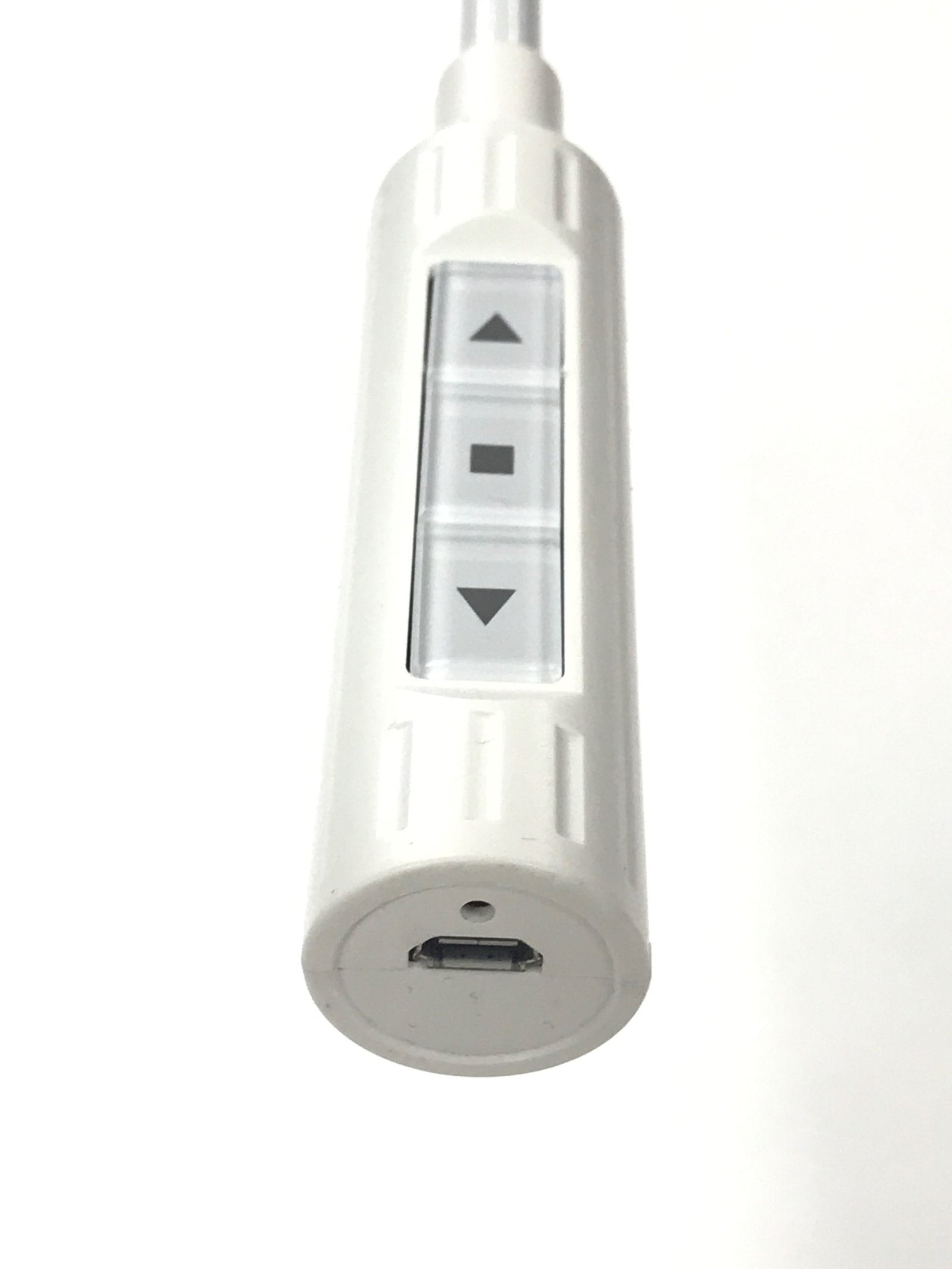

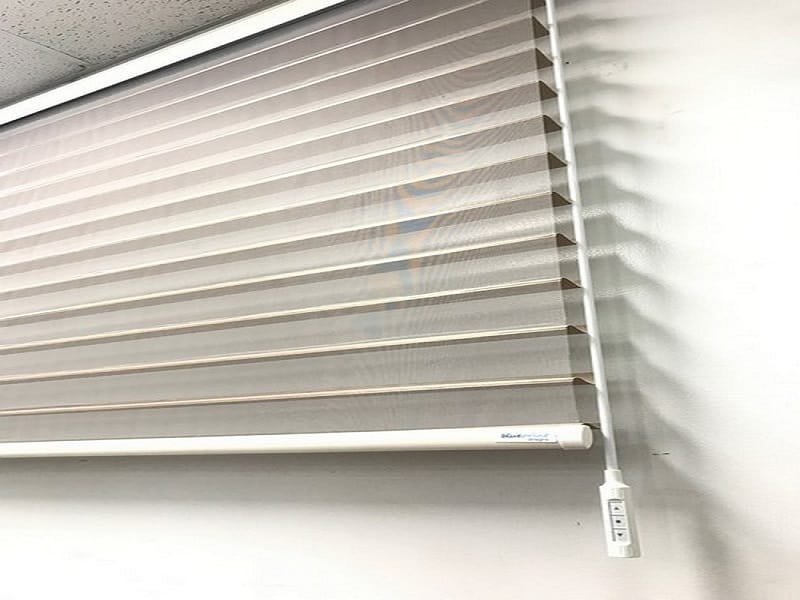

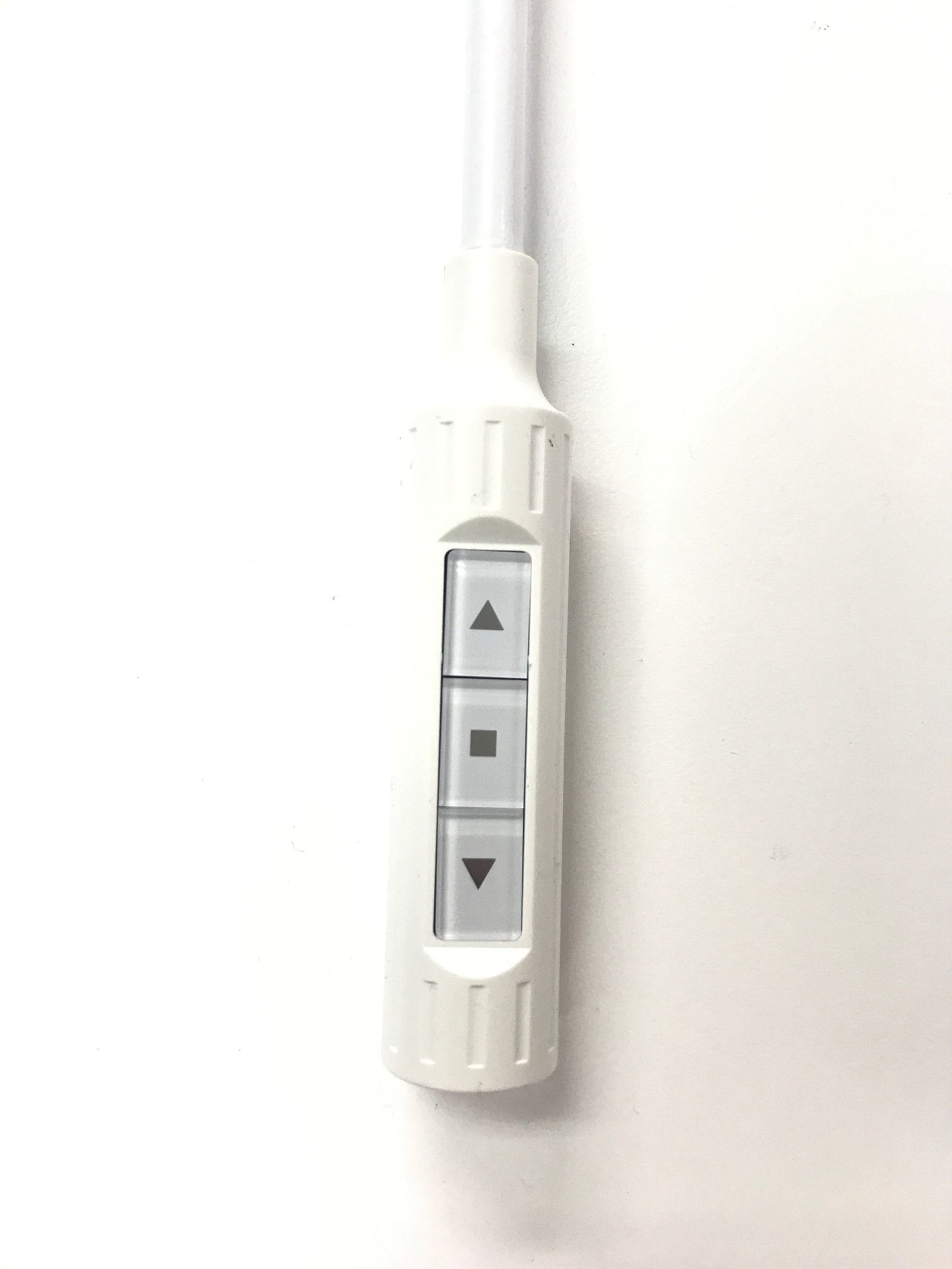

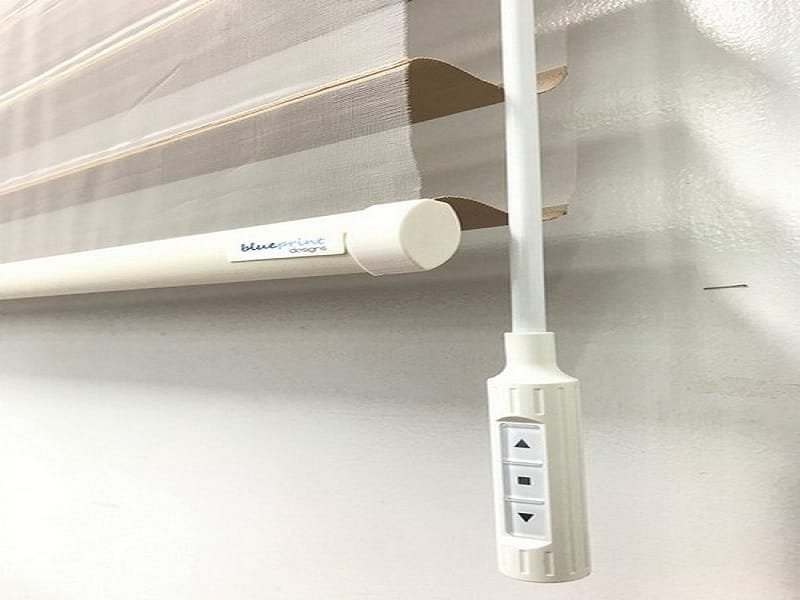

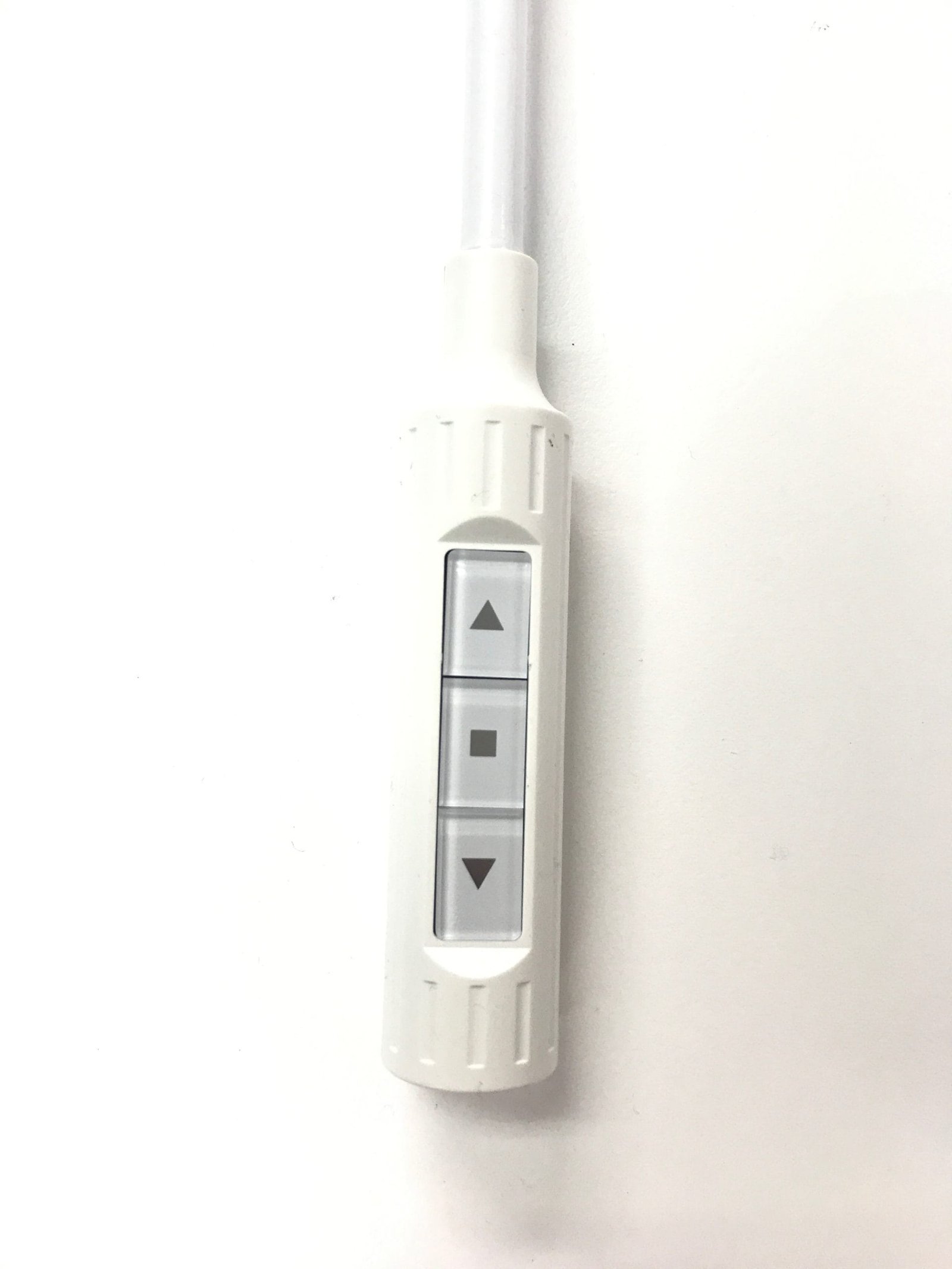

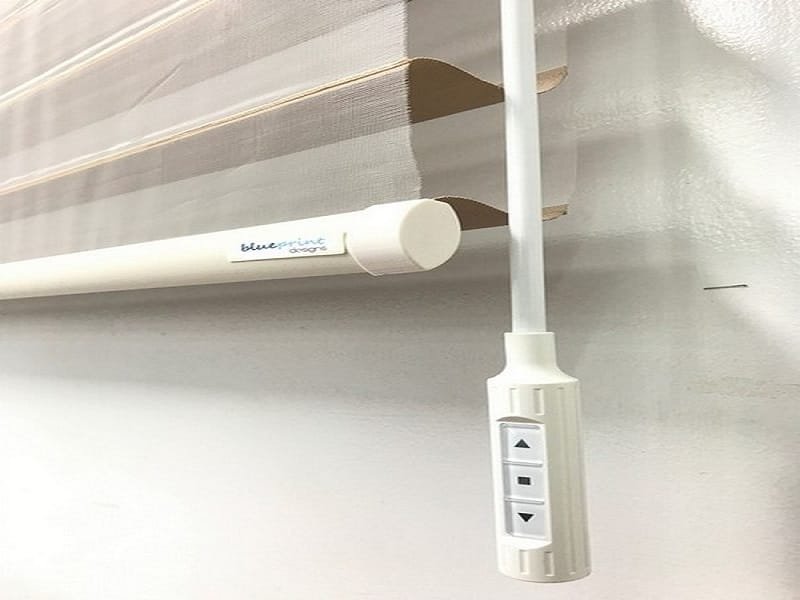

AUTO-LINE WAND MOTOR

  • DESCRIPTION

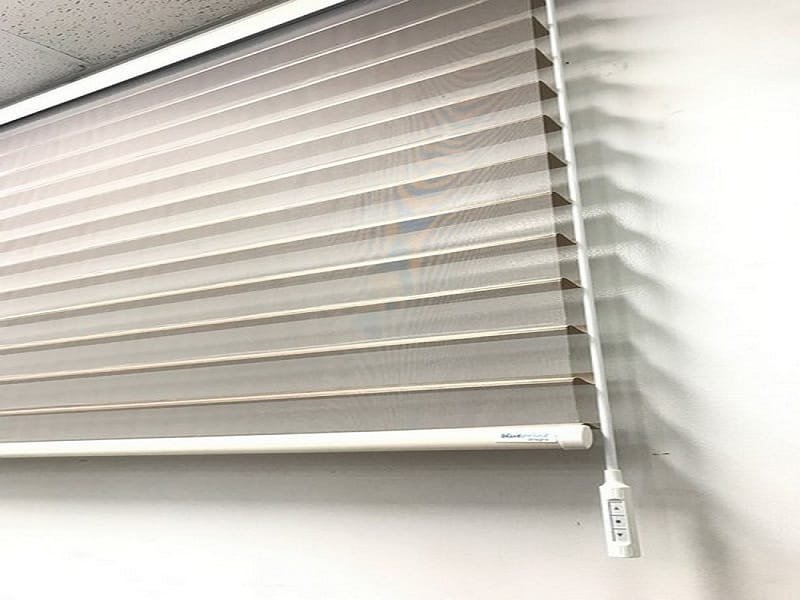

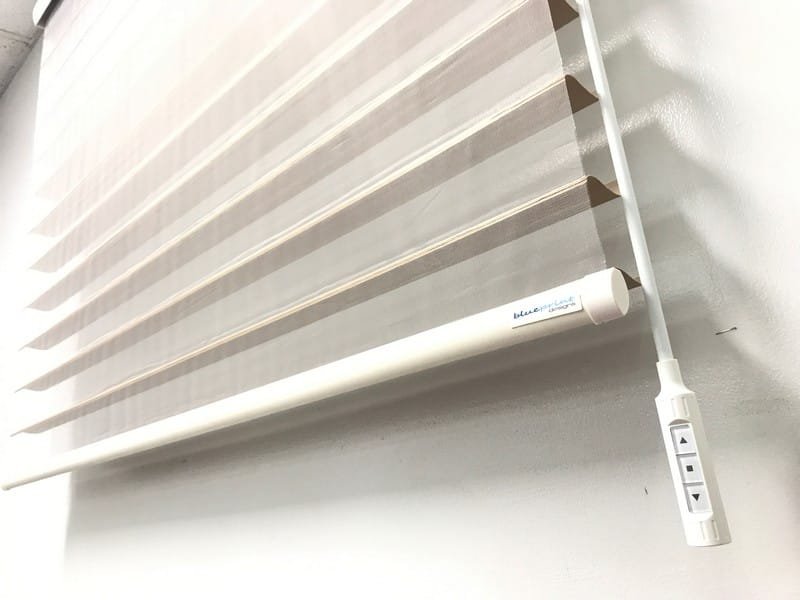

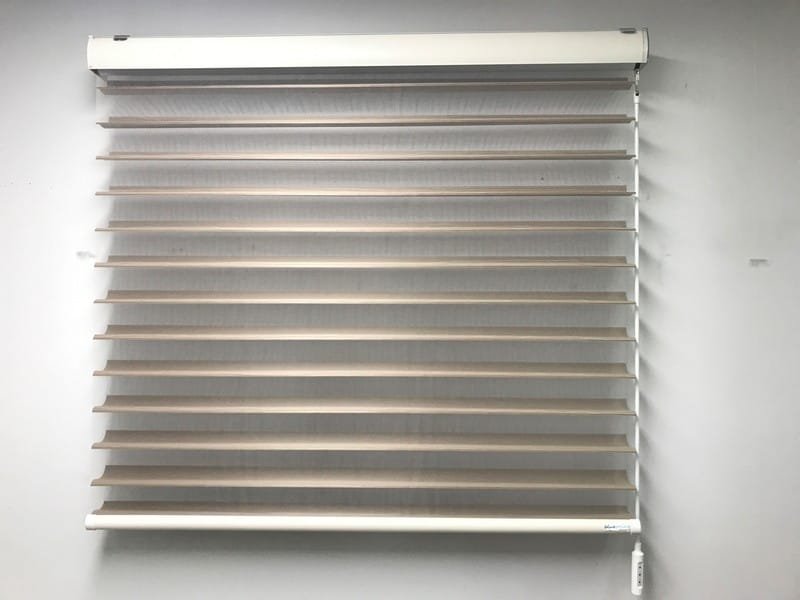

    Auto-Line Wand Motor is the cushy and luxurious way to add functionality and convenience to the usual window shades.

    It is an upgrade to the regular motorized window blinds into Motorized window blinds
    that offers two operational types; The Wand (standard type) and the RF Module (an electronic device affixed to the standard type for wireless control option) An alternative for Motorized window blinds offered here in the Philippines both of which are incredibly safe and child-friendly.

  • PRODUCT FEATURES

    • It has patented low noise DC motor.
    • Adjustable rotation speed.

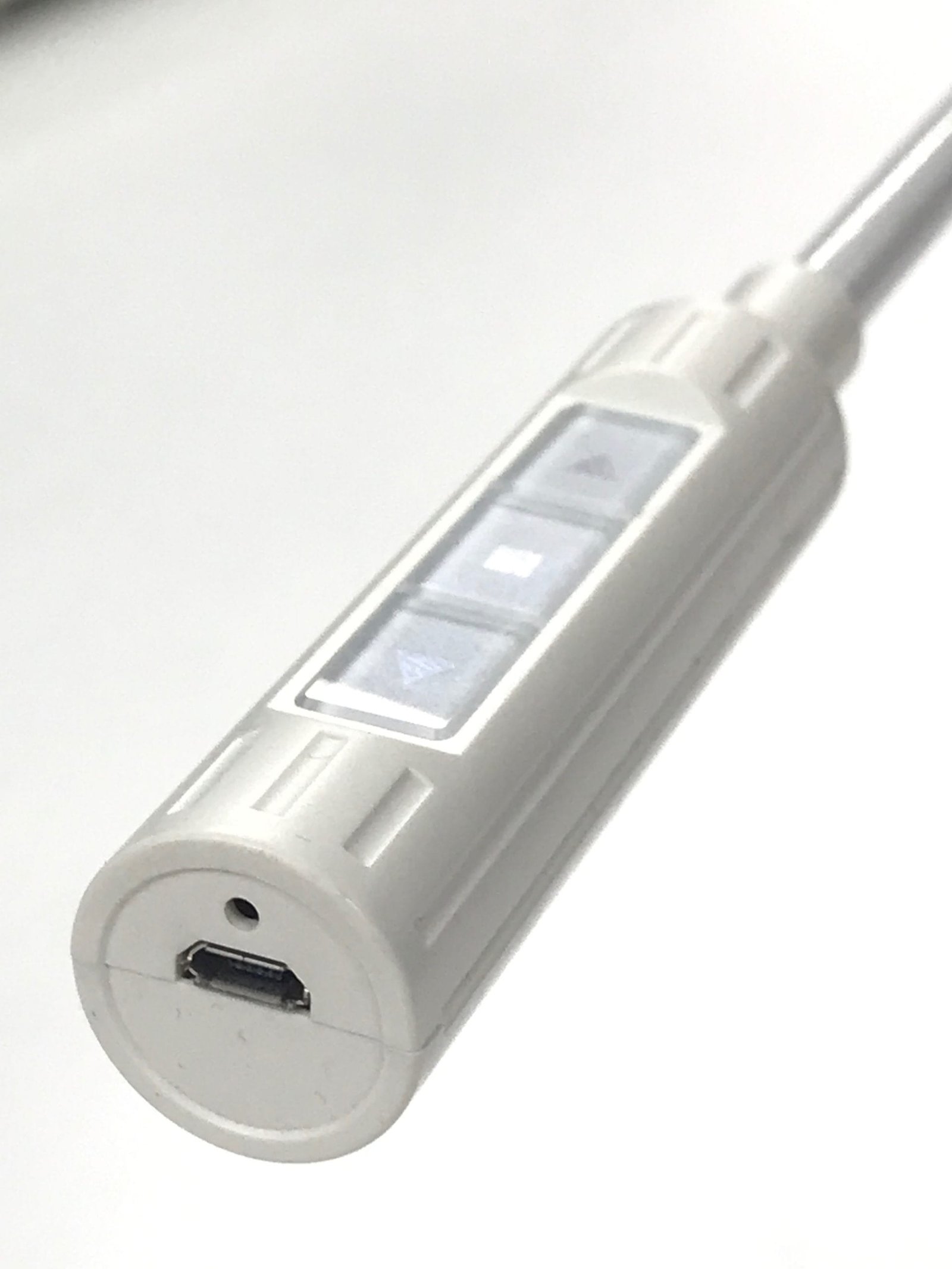

    • Charging of the unit is simple and effortless.
    • Child protection feature through the wireless switch.
    • Wireless control via mobile and remote control options..

  • PRODUCT SPECIFICATION

    • Model: AM25 – 1.2/30
    • Rated Torque (N.m): 1.2
    • Rated Speed (rpm): 30
    • Tube Diameter (mm): 25
    • Rated Voltage (V): DC 7.4
    • Current (uA): 10
    • Rated Current (A): 0.9
    • Protection Rate (IP): 42
    • Maximum Rotation (turn): infinity
    • L1/L2 (mm): 451/415

  • RF MODULE SPECIFICATIONS

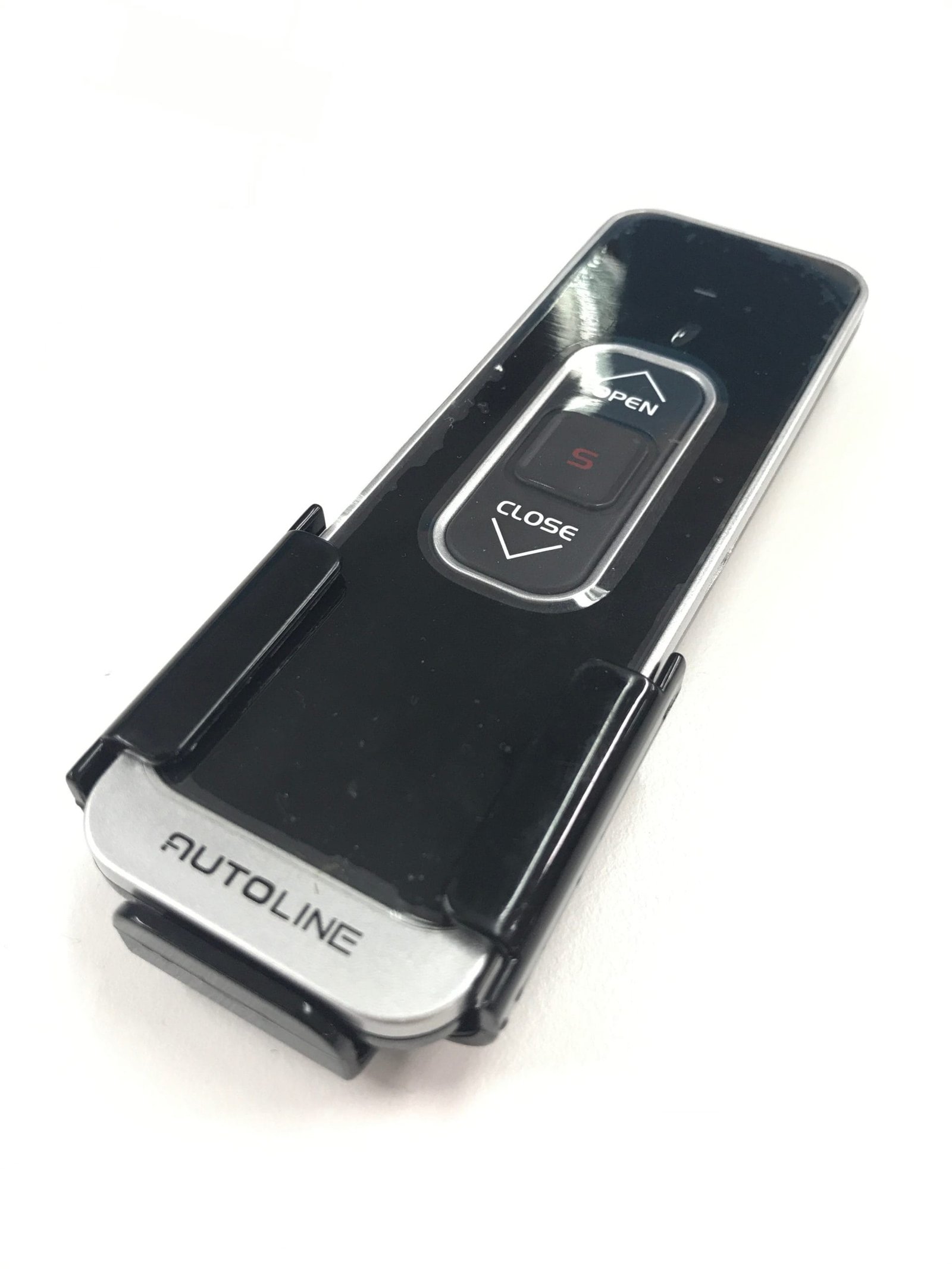

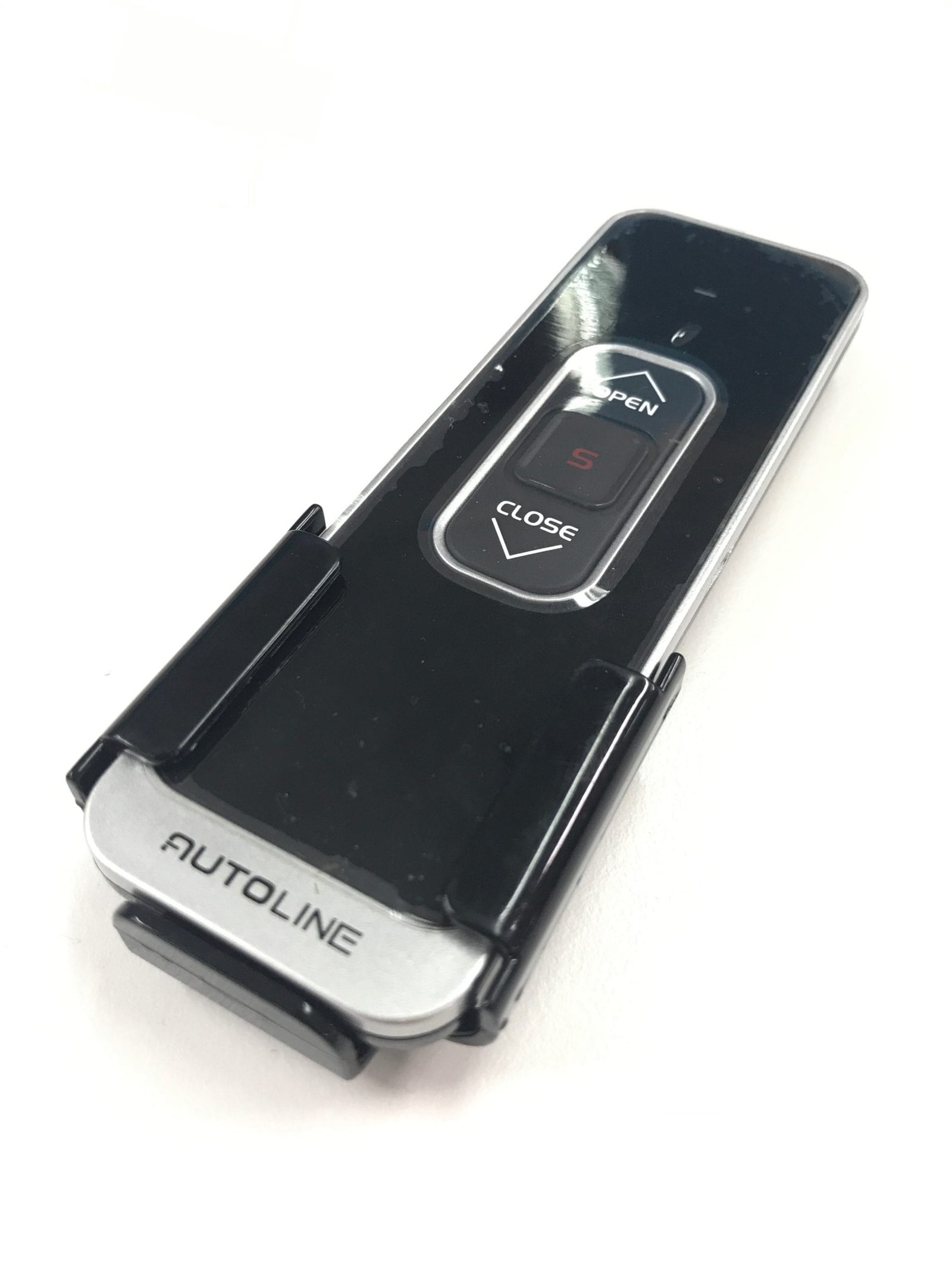

    RF Module is optional; it can be attached to the standard model to have a cordless switch through the use of a remote control. It also has a buzz sound feature that indicates low battery level.

    – Power: DC 3.3V
    – Operating Frequency: 447.775MHz
    – Dimensions: 24.5 x 24.5 x 42.85 (mm)
    – Operating Temp: -10ᵒC + 50ᵒC
    – Switch: 1 key
